Apparatus for testing the cord anchorage

BND-DY1

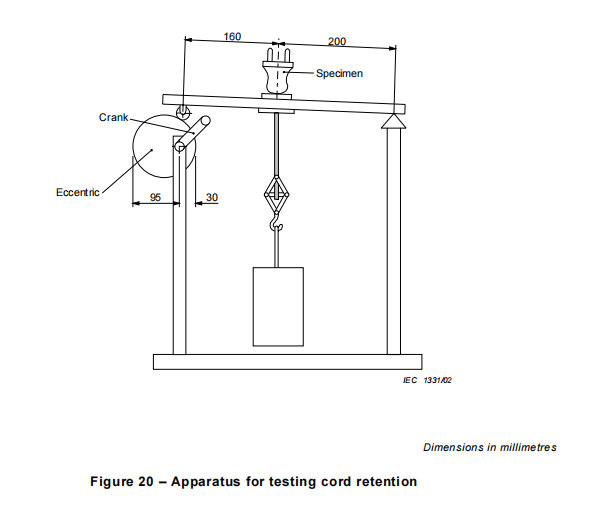

This device complies with GB2099-2008 Figure 20, IEC884 Figure 20, GB10882 Figure 9 ,IEC60320 figure 6 and other standard requirements. It is used to detect the retention of plugs or other electrical accessories and flexible cables on mobile sockets. It is suitable for connecting wires and cables of plugs or other electrical accessories. Whether the electrical accessories are firm. After the test machine is started, it will automatically proceed, and it will stop working when the set number of times is reached. The test principle is as follows:

Technical Parameters:

1. Working power supply: AC220V 50HZ

2. Number of jobs: 1～9999

3. Force frequency: 60 times/minute

4. Counterweight: 10N (1), 20N (2), 60N (1)

5. Working stroke: 65mm
