IEC60529 IPX12 IPX34 to IPX8 IPX9K waterproof testing machine
Product Description

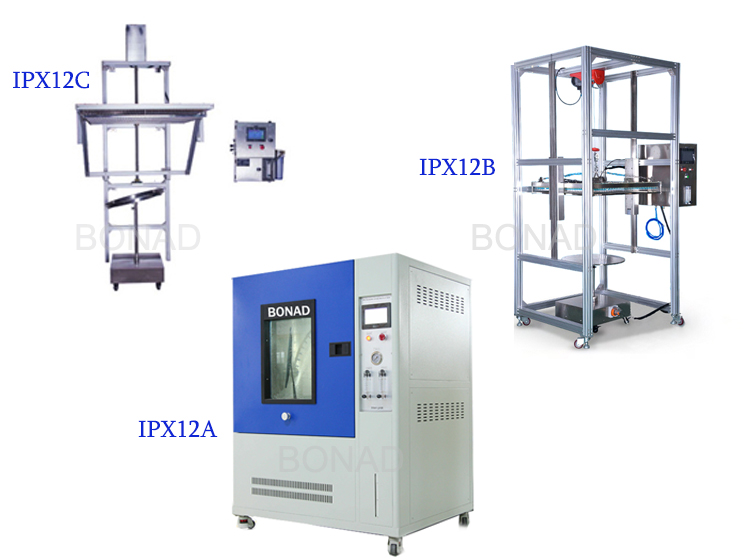

1. IPX12 Water Drip rain test chamber
|
No.
|
model
|
BND-IPX12A-200
|
BND-IPX12A-600
|
|
1
|
Drop of rain area
|
200*200mm(can customize)
|
600*600mm(can customize)
|
|
2
|
Equipment outer dimensions
|
L350*D350*H750mm
|
L800*D800*H1000mm
|
|
3
|
Turntable diameter
|
￠200 mm
|
￠600 mm
|
|
4
|
Dripping aperture
|
￠0.4mm.
|
|
5
|
The distance between holes
|
20*20 mm
|
|
6
|
Rainfall
|
1-5mm/Min(±0.5mm/min)
|
|
7
|
Flow adjustment mode
|
manual setting
|
|
8
|
Drop of rain tank lifting height
|
fixed
|
|
9
|
Turntable bearing
|
20KG
|
50KG
|
|
10
|
Turntable Speed
|
1 r/min
|
|
11
|
Turntable Adjustable Incline
|
0° or 15°
|
|
12
|
Turntable lifting range
|
200-400mm
|
|
13
|
Testing time
|
0-999 min
|
|
14
|
Protective device
|
Leakage, water shortage, short circuit
|
|
15
|
Power (V)
|
220V
|
|
16
|
Power (KW)
|
1
|
|
17
|
Standards compliant
|
IEC60529:1989+A1:1999(IPX1 IPX2)
|

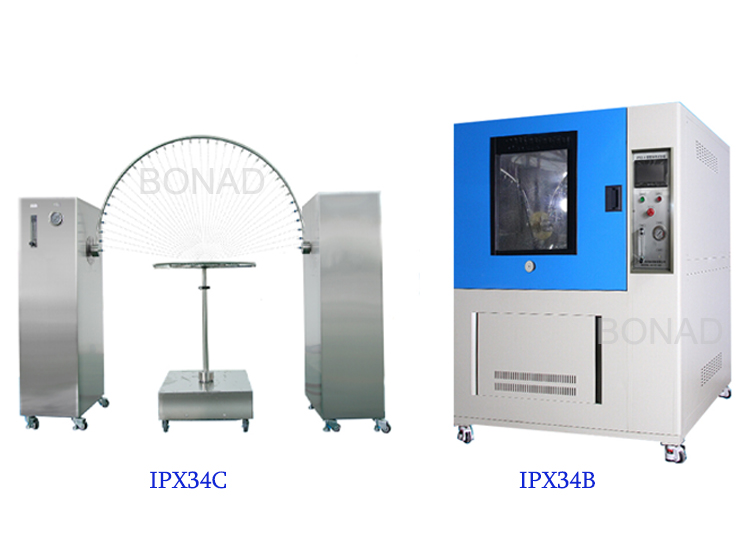

2. IPX3/4 Oscillating Tubes Rain Test Equipment
|
No.
|
Model
|
BND-IPX34C-1600
|
BND-IPX34C-1400
|
BND-IPX34C-1200
|
BND-IPX34C-800
|
|
1
|
Swing pipe size (mm)
|
R1600
|
R1400
|
R1200
|
R800
|
|
2
|
External dimensions (mm)
|
L4000*D3200*H2800
|
L3800*D3000*H2600
|
L3200*D2400*H2400
|
L2400*D800*H2000
|
|
3
|
Flow (L / mm))
|
0-10L/min
|
0-10L/min
|
0-6L/min
|
0-4L/min
|
|
4
|
Turntable Diameter Size (mm)
|
1000 (can customize,800,600,400,200 turntable)
|
|
5
|
Turntable height adjustable range
|
1750-2350mm
|
1750-2350mm
|
1350-1950mm
|
950-1550mm
|
|
6
|
Pendulum tube diameter (mm)
|
>15
|
15
|
|
7
|
Water pore size (mm)
|
0.4 mm
|
|
8
|
Pendulum tube angle
|
120o(IPX3), 350o(IPX4)or customize
|
|
9
|
Swing speed tube
|
120°(to and fro) 4S,360°(to and fro)
12S(accurate control)or customize
|
|
10
|
Swing pipe material
|
SUS304 stainless steel
|
|
11
|
Turntable speed test
|
1-5r/min(accurate control)
|
|
12
|
protective device
|
Leakage, water shortage, short circuit
|
|
13
|
Power supply (V)
|
220V
|
|
14
|
Power(KW)
|
1
|
|
15
|
Standards
|
IEC60529:1989+A1:1999,(IPX3,IPX4)
|
![]()

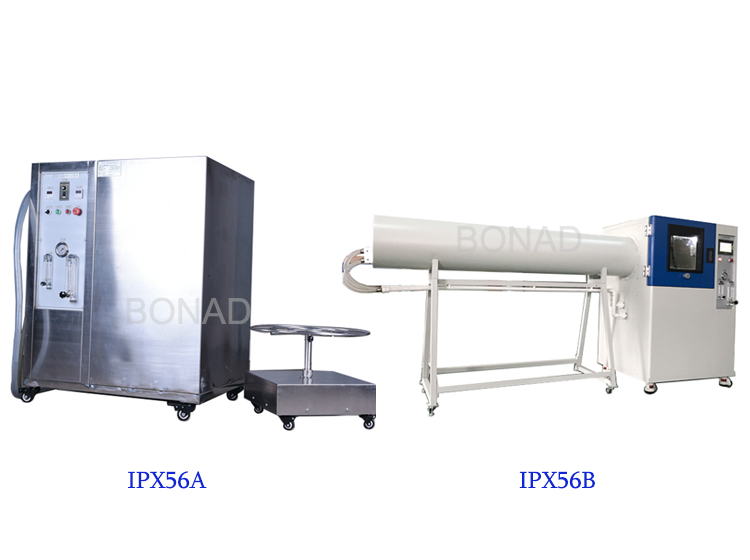

3, IPX56 strong water jet /water flush test equipment
|
Model
|
IPX56BS-500L
|
IPX56BS-700L
|
IPX56BS-1400L
|
IPX56BS-1700L
|
IPX56BS-1900L
|
|
Inner size(mm)W*D*H
|
800*800*800
|
900*900*900
|
1180*1180*1000
|
1180*1180*1180
|
1180*1180*1300
|
|
Outer size(mm)W*D*H
|
4000*1050*1600
|
1150*1150*1700
|
4000*1450*1800
|
4000*1450*1850
|
4000*1450*2000
|
|
Turntable diameter(mm)
|
600
|
600
|
800
|
￠800
|
800
|
|
IPX5 diameter(mm)
|
6.3
|
|
IPX6 diameter(mm)
|
12.5
|
|
IPX5 flow(L/min)
|
12.5±0.625
|
|
IPX6 flow(L/min)
|
100±5L/min
|
|
Power(Mpa)
|
According to the provisions of water flow regulation
|
|
spray water distance
|
2.5M
|
|
Pump
|
stainless steel multi-stage pump
|
|
Spray nozzle fixing method
|
machinery fixation
|
|
Water pipe materials
|
Stainless steel+PPR
|
|
Inner box materials
|
SUS304#stainless steel
|
|
Sample table materials
|
SUS304#stainless steel plate
|
|
protector
|
Electric leakage, water-break, cutting-out
|
|
Power supply(V)
|
380V
|
|
Power(KW)
|
3
|
|
Standard
|
IEC60529:1989+A1:1999,GB4208,GB7000.(IPX5,IPX6)
|

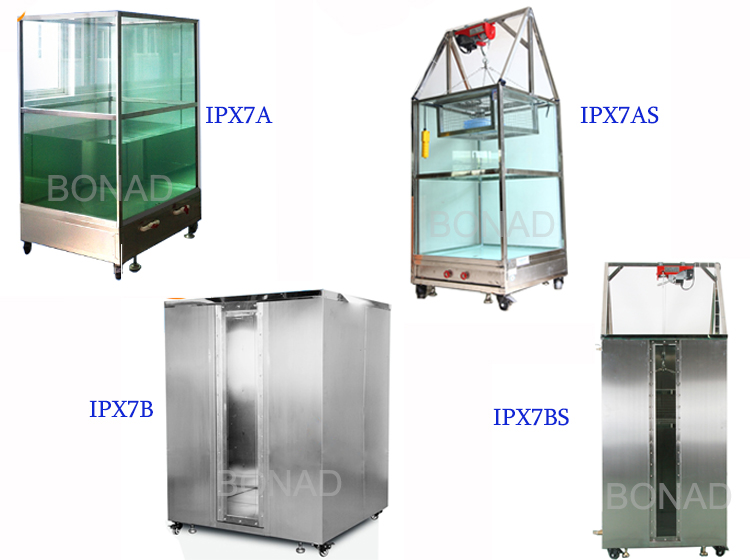

4, IPX7 Water immersion test chamber
|
No.
|
Model
|
BND-IPX7B-108L
|
BND-IPX7B-432L
|
BND-IPX7B-960L
|
BND-IPX7B-1200L
|
BND-IPX7B-1728L
|
|
1
|
Inner size(mm)
|
300*300*1200
|
600*600*1200
|
1000*800*1200
|
1000*1000*1200
|
1200*1200*1200
|
|
2
|
outer size(mm)
|
360*360*1300
|
660*660*1300
|
1080*880*1300
|
1080*1080*1300
|
1280*1280*1300
|
|
3
|
Thickness of plate
|
1.5mm
|
1.5mm
|
1.5mm
|
2mm
|
2mm
|
|
4
|
highest water depth
|
1.2m
|
|
5
|
Water adjustment
|
Manual adjustment
|
|
6
|
Water level display
|
Stainless steel ruler(show several degree 1mm)
|
|
7
|
Tank material
|
Stainless steel
|
|
8
|
Standard
|
IEC60529:1989+A1:1999,GB4208,GB7000.(IPX7)
|

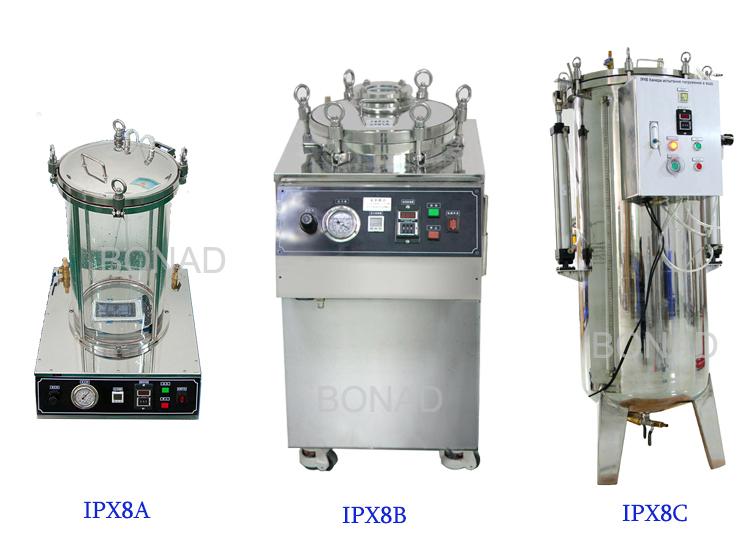

5, IPX8 Air pressure Water Immersion Test Chamber
|
No.
|
Model
|
IPX8-30M-100L
|
IPX8-30A-100L
|
IPX8-50M-100L
|
IPX8-50A-100L
|
IPX8-120A-100L
|
|
1
|
Pressure adjustment method
|
manual adjustment
|
automatic adjustment
|
manual adjustment
|
automatic adjustment
|
automatic adjustment
|
|
2
|
control accuracy
|
visual inspection
(manual)
|
±0.002Mpa(AUTO)
|
visual inspection
(manual)
|
±0.002Pa(AUTO)
|
±0.002Pa(AUTO)
|
|
3
|
Pressure adjustment range
|
0.05-0.3Mpa
|
0-0.3Mpa
|
0.05-0.5Mpa
|
0-0.5Mpa
|
0-1.2Mpa
|
|
4
|
Test water depth range
|
5-30M
|
0-30M
|
5-50M
|
0-50M
|
0-120M
|
|
5
|
Exhaust Pressure of safety valve
|
0.35Mpa
|
0.35Mpa
|
0.55Mpa
|
0.55Mpa
|
1.25Mpa
|
|
6
|
The maximum limit of pressure
|
0.4Mpa
|
0.4Mpa
|
0.6Mpa
|
0.6Mpa
|
1.3Mpa
|
|
7
|
accuracy
|
0.4 class
|
0.001Mpa
|
0.4 class
|
0.001Mpa
|
0.001Mpa
|
|
8
|
The thickness of the tank
|
3mm
|
3mm
|
4mm
|
4mm
|
6mm
|
|
9
|
thickness of flange
|
20mm
|
20mm
|
25mm
|
25mm
|
30mm
|
|
10
|
diameter of the tank
|
0.5M
|
|
